About this item

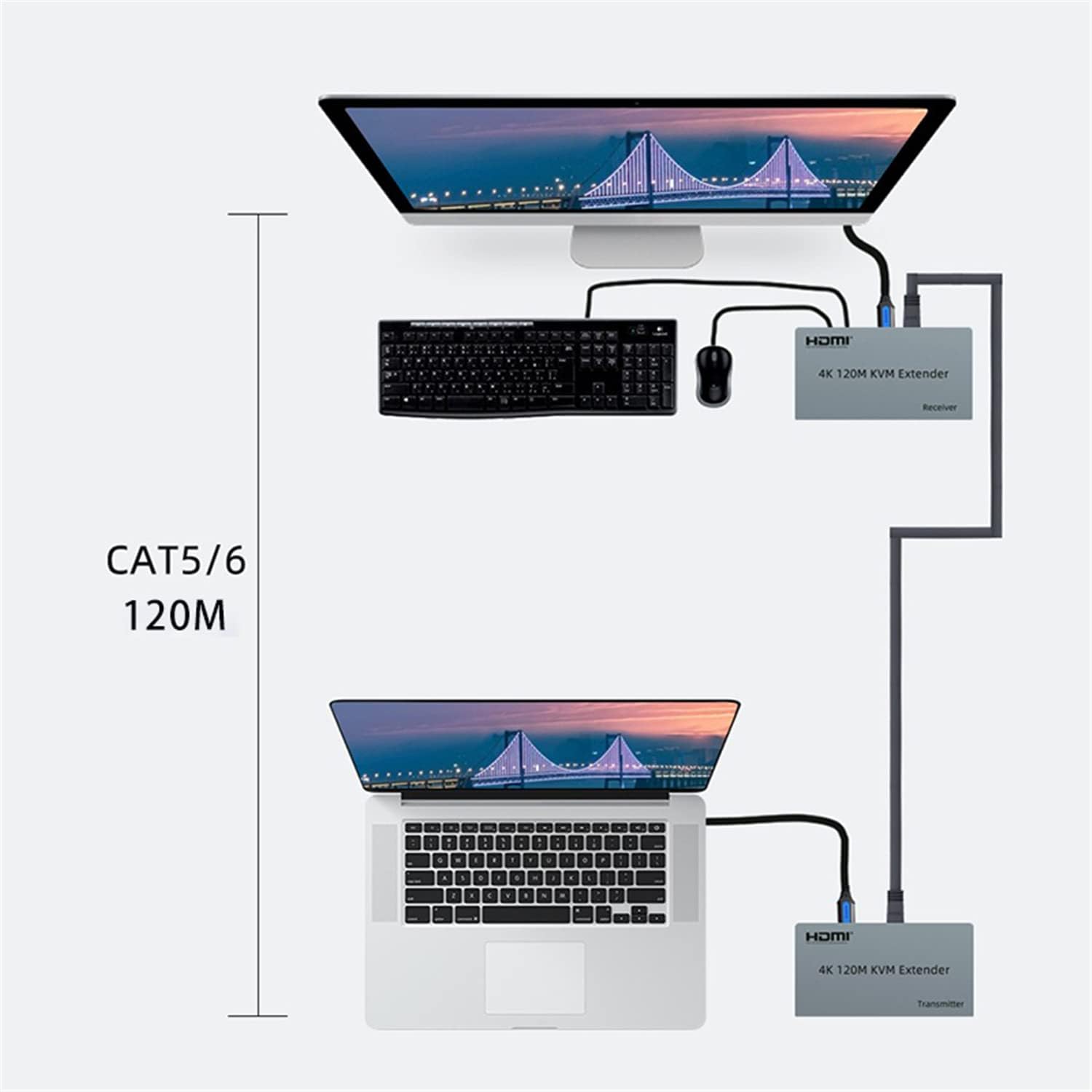

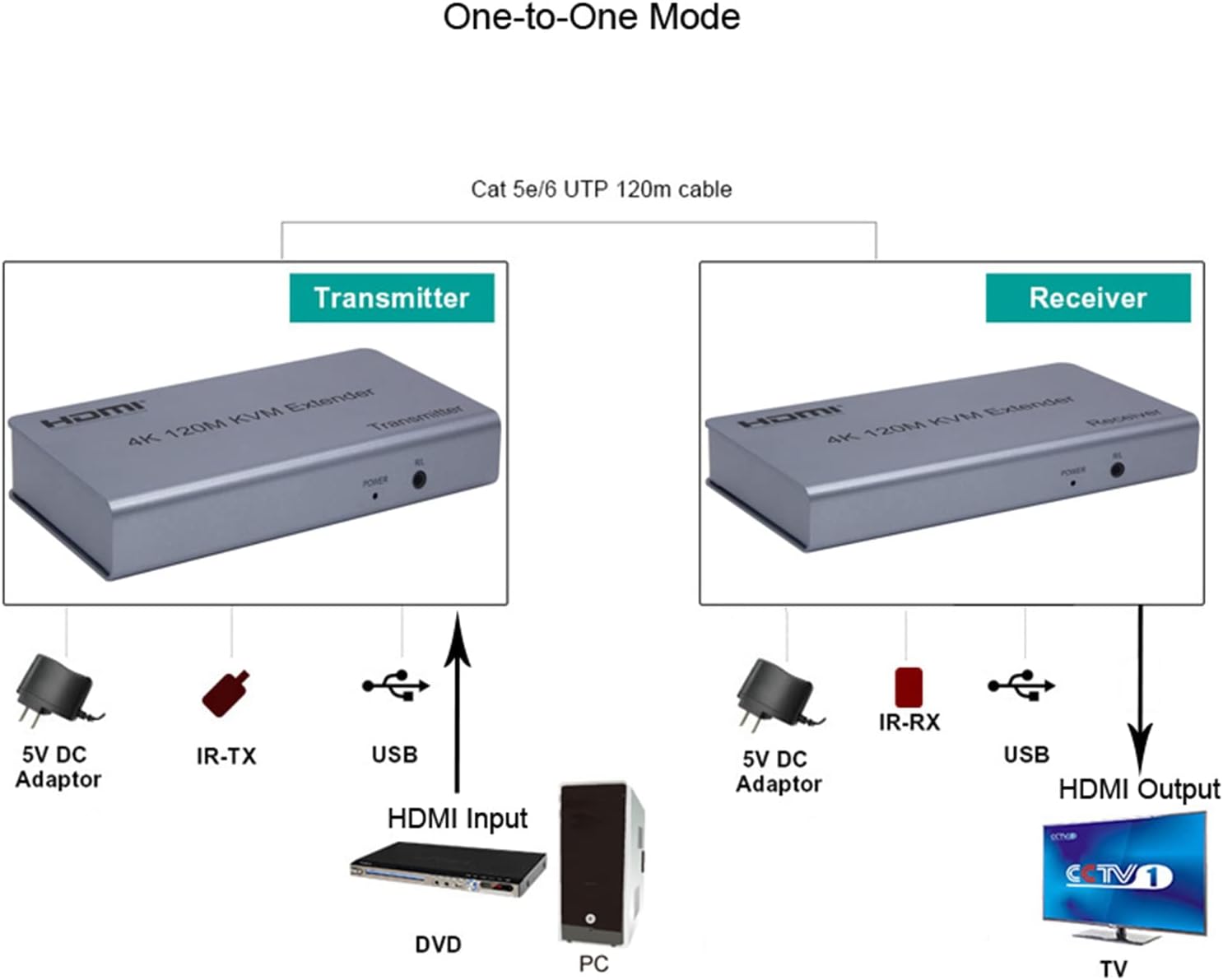

• 1. Use a CAT5e or CAT6 cable (recommended) instead of the HDMI cable to extend the HDMI2.0 4K @ 60Hz signal for 60 meters.
• 2. Support keyboard / mouse / USB2.0 extendin。

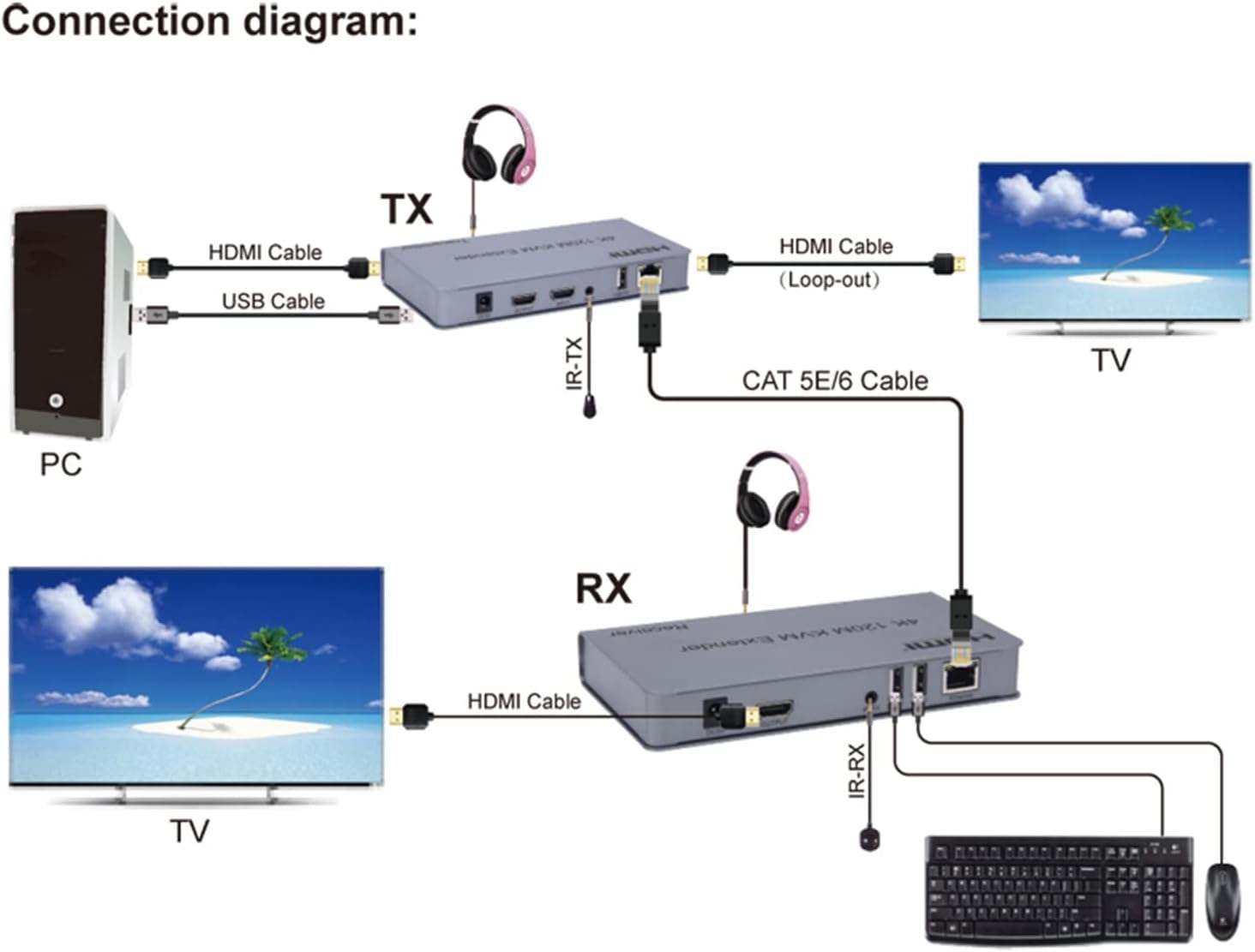

• 3. The transmitter supports an HDMI loop-out to monitor the signal source more conveniently. Both the transmitting and receiving ends support 3.5MM left and right channel audio output.
• 4. It supports infrared remote extension and remote control, which can remotely control the source equipment on the display side, which is easy to install and plug and play.

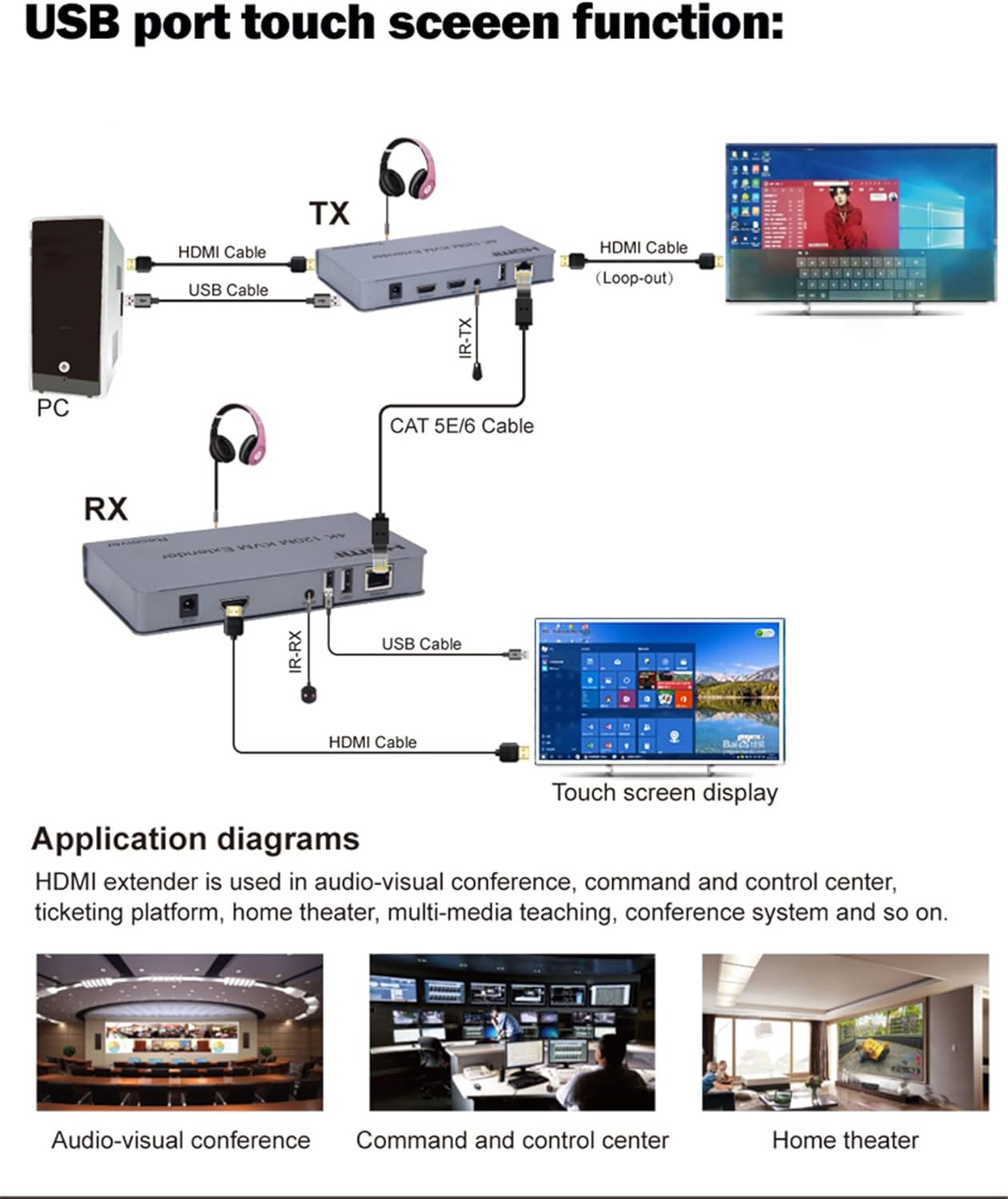

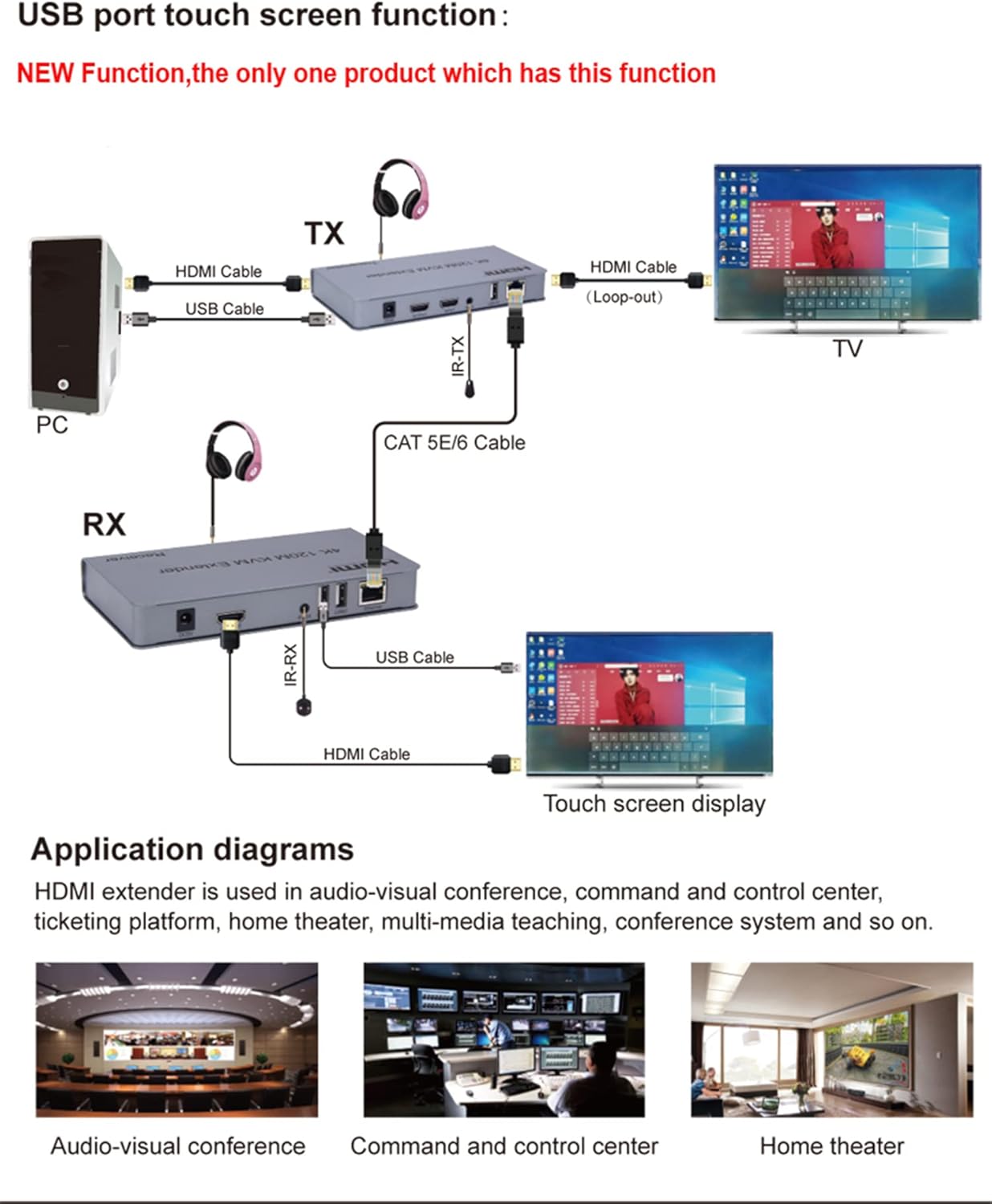

• 5. It is widely used in video conference, monitoring center, multimedia teaching, home theater, etc. It can efficiently and quickly transmit video to meet the needs of your various occasions.

• Product Description

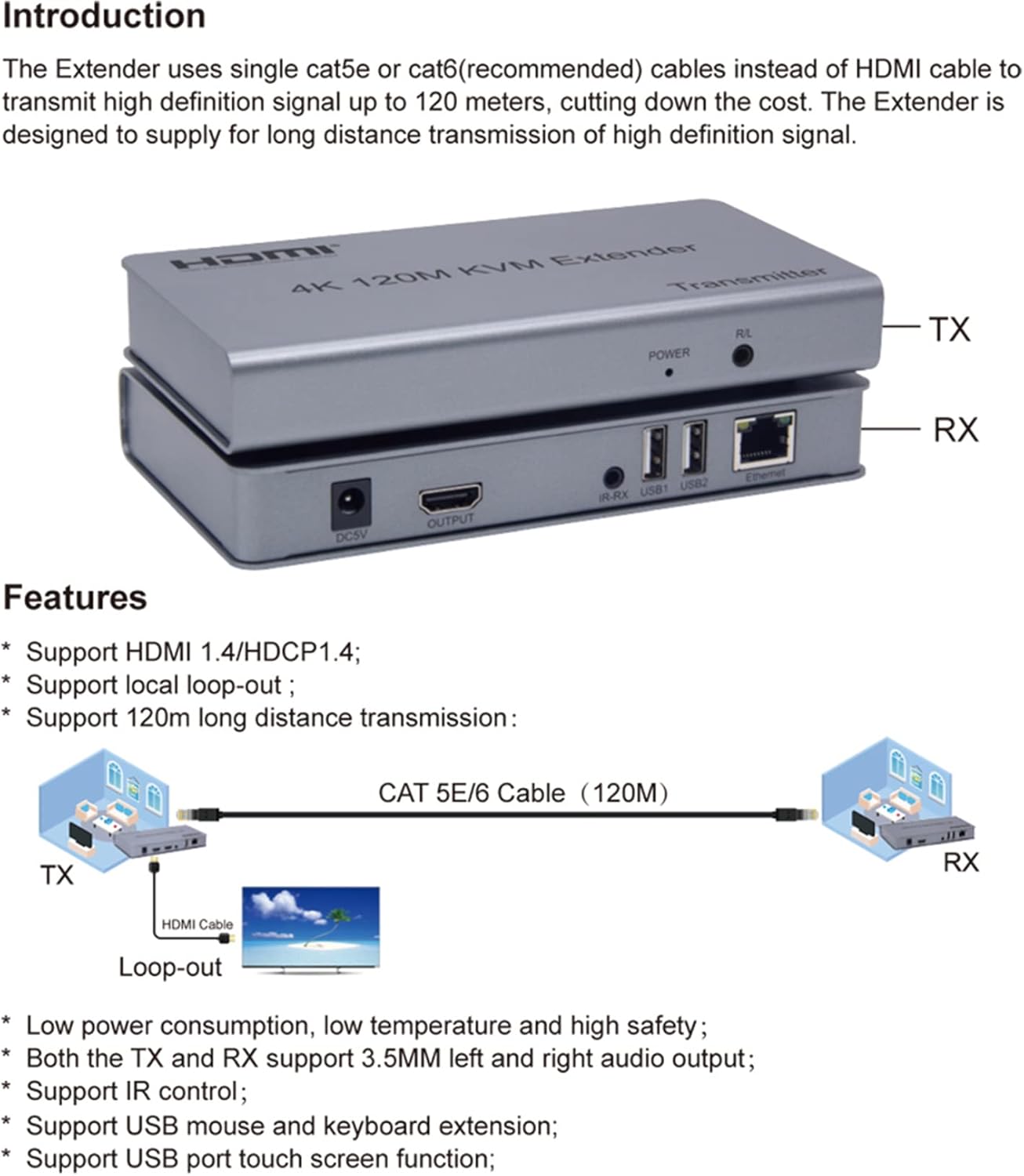

  Features
  * Support HDMI 1.4/HDCP1.4;
  * Support local loop-out ;
  * Support 120m long distance transmission.
  * Low power consumption, low temperature and high safety;
  * Both the TX and RX support 3.5MM left and right audio output;
  * Support IR control;

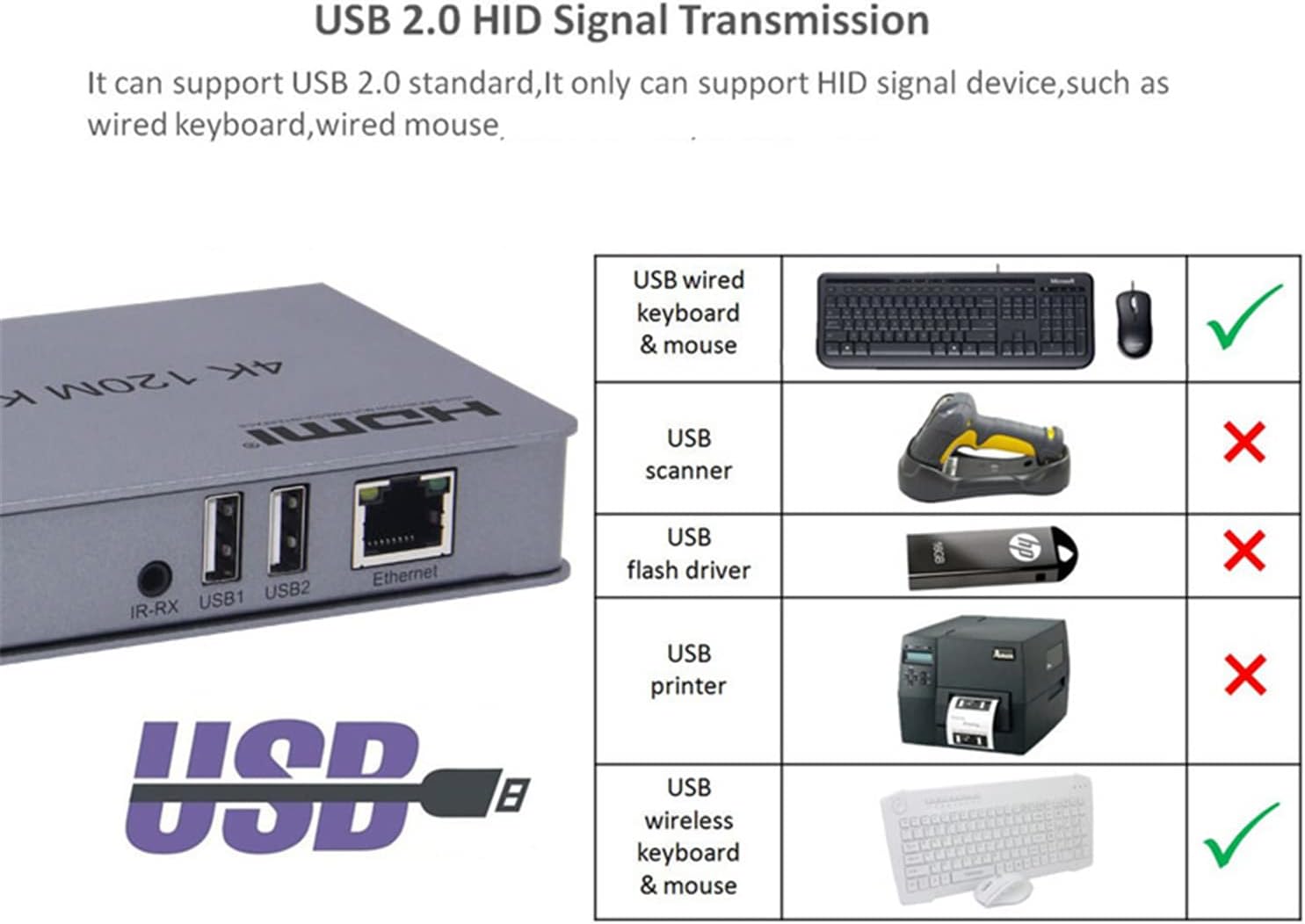

  * Support USB mouse and keyboard extension;
  Specifications:
  Length of CAT5e/CAT6 cable between Rx and TX：120 meters
  HDMI Input：4k/1080p/720p/576p/576i/480p/480i
  HDMI Output ：4k/1080p/720p/576p/576i/480p/480i
  Max bandwidth ：340MHz
  Max baud rate：3x3.4Gbps
  Input video signal：0.5~1.5Volts p-p
  Output DDC signal ： 5Volts p-p (TTL)
  Input HDMI cable distance ：≤10m AWG26 HDMI standard cable
  Output HDMI cable distance ：≤10m AWG26 HDMI standard cable
  TX Max working current：350mA
  RX Max working current ：200mA
  Power adapter format ：Input:AC (50HZ, 60HZ) 100V-240V;
  Output: DC5V/1A
  Operating Temperature range ：(-15 to +55℃)
  Operating Humidity range ： 5 to 90%RH (No Condensation)
  Dimension (L x W x H) ：107x105x27.3 (mm)
  TX Weight ：499g RX Weight ：494g
  The Package includes:

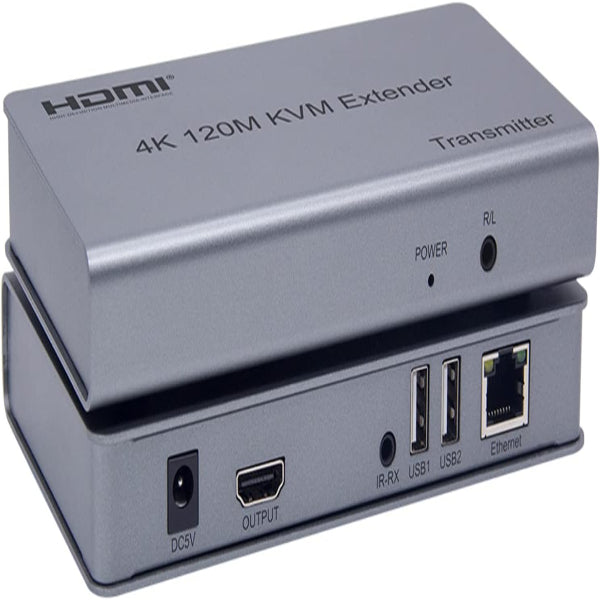

  1. TX Extender 1pcs
  2. RX Extender 1pcs
  3. IR cable 1pair
  4. 12V/2A DC Power adapter 2pcs
  5. User Manual 1pcs
